Unique features characterize fiber lasers, such as electrical-optical efficiencies up to more than 30%, outstanding beam quality with M2<1.1 for single-mode fiber laser design, M2<1.2 for double-clad fiber, a long lifetime (> 100,000 hours) and a compact, maintenance-free and insensitive design.
In addition to solid-state lasers, CO2 lasers are among the most powerful and most frequently used lasers in industry. Here, a beam of infrared light is generated with a wavelength in the bands of 9.4 and 10.6 µm. CO2 lasers are efficient and cost-effective, which is why they are used primarily in industrial material processing.
Metals, plastics, glass, ceramics, wood, and more.
No wear and tear on parts or tools.
No need for inks, chemicals, or consumables.
Increases throughput and efficiency.
Markings that last a lifetime.

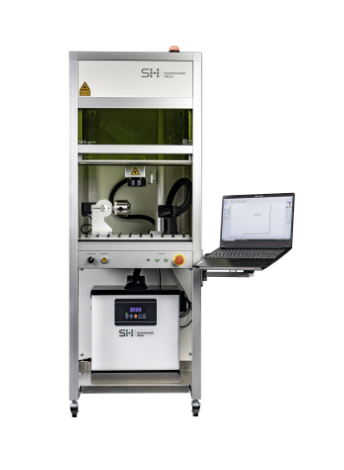

Compact laser with large marking area. Can be individually adapted for long components.
The universal laser marking system LAS 28 from Thierry Corp can be used for a very wide range of marking applications. With the integrated fiber laser you can mark almost all materials such as steel, carbide, aluminum and plastics.
Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries.
With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.

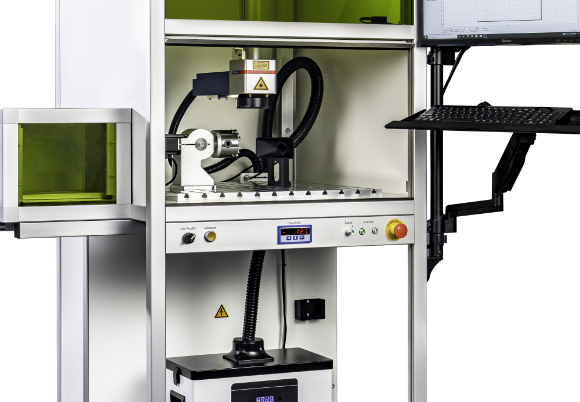

The standard equipment includes a laptop incl. holder with Windows operating system and laser software. Optionally, the laser model LAS 28 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Further options, such as lateral extensions for marking long parts, can be realized.
Product Data

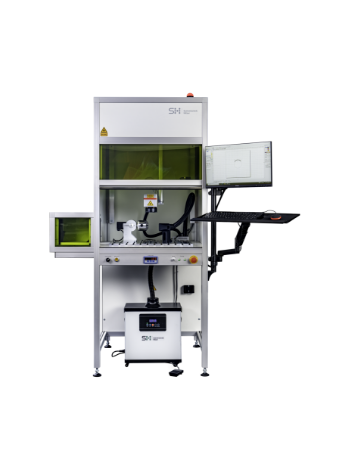

The enlarged version of our compact laser with increased working range. Customizable for large components.
The universal laser marking system LAS 28 XL from Thierry Corp can be used for a very wide range of marking applications. With the integrated fiber laser you can mark almost all materials such as steel, carbide, aluminum and plastics.
Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries.
With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.
The standard equipment includes a laptop incl. holder with Windows operating system and laser software. Optionally, the laser model LAS 28 XL can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts. Further options, such as lateral extension arms for marking long parts, movable Z-axis, drawer systems, etc., can be realized.
Product Data

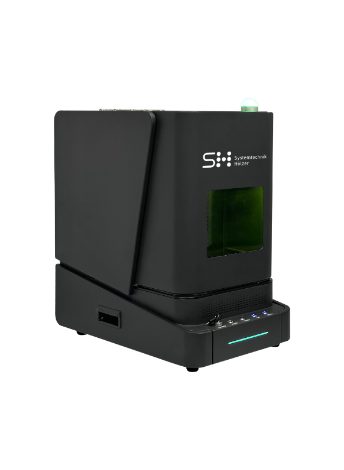

Compact Tablelaser for small parts with automatic Z-Axis function.
The LAS 22 is a compact tabletop unit with a small working area, ideally suited for small parts. Due to its small size, the system is very practical and can be used anywhere.
The universal laser marking system LAS 22 from Thierry Corp can be used for a very wide range of marking applications. With the integrated fiber laser, you can mark almost all materials such as steel, carbide, aluminum and plastics.
Depending on the requirements, the system can be equipped with a 20, 30 or 50 watt fiber laser. For permanent marking, the use of the laser is necessary in many industries.
With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and article numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.
The standard equipment includes a laptop with Windows operating system and laser software. Optionally, the laser model LAS 22 can be equipped with a rotary axis (3-jaw chuck) for marking cylindrical parts.
Product data

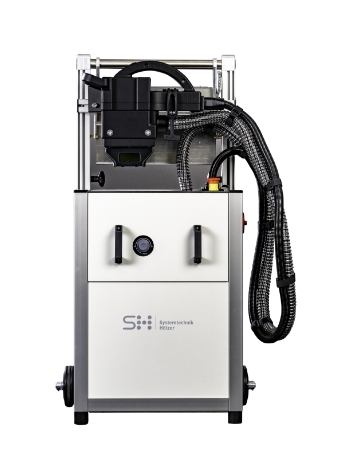

Marking laser on rolls - small, handy, universally applicable for large and heavy components.
The mobile laser LAS 23 portable is characterized by its compact design. Small, handy and with custom-made attachments that can be individually exchanged in the quick-change system. With its mobile base, it can be moved to the workpieces to be marked. This makes it suitable for small, large and heavy workpieces.
With the powerful laser software, texts, numbers, 2D codes, QR codes and logos can be realized with just a few clicks without extensive programming knowledge. Serial and item numbers are automatically incremented by the software after prior setting. In addition, the software can read data (variable information such as drawing numbers, project designations, etc.) from existing tables and automatically transfer them to predefined areas. The use of a hand scanner is also possible.
Product data
We provide precision-engineered laser marking systems tailored to various industrial needs.
