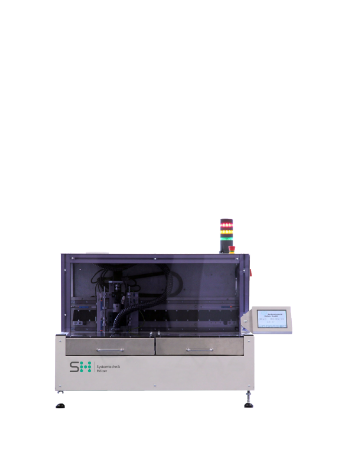

Small, flexible panel separator for connecting the remaining web with a variable work area.
The compact table version LOW MINI was specially developed for depaneling for series with a small format, for small series with a large format and cost-conscious production. Printed circuit board materials, with a residual web connection up to a maximum size of 320 mm x 580 mm, can be separated quickly and economically. The cutting process is servo-controlled in all axes, with the milling drive from above. The change of work area from small (320x280mm) to large (320x580mm) format is the highlight of the machine due to the simple and uncomplicated handling.
Product Data
The concept of manual depaneling offers enormous advantages when it comes to flexibility and costs. Medium production volumes can be separated quickly and with low dust levels with the LOW MINI. Standard features include 1-fold loading in linear motor technology; operation with a 1-fold shuttle is possible to increase the working area. The ease of maintenance and operation combined with the excellent price-performance ratio allows pleasant working and makes the investment in this depanelizer also economically worthwhile.
Options:

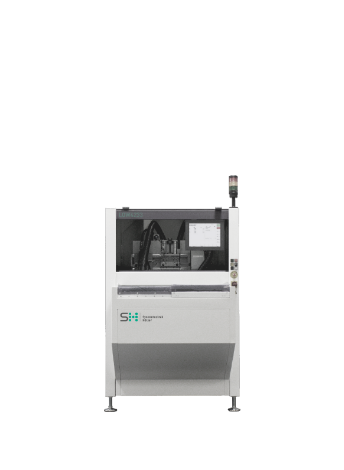

Compact panel separator for residual web connection and pre-scored circuit boards.
The highly dynamic depaneling machine LOW 4233 is particularly suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards use different materials such as using low-dust and low-stress sawing and milling techniques with the highest amount of product
flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product Data

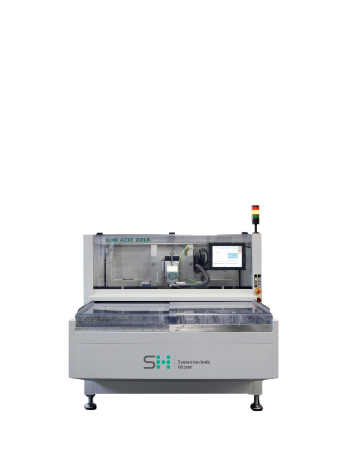

Depaneling machine with a large working area for residual web connection with pre-scored circuit boards.
The highly dynamic depaneling machine LOW 4233 XL is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit board benefits from a wide variety of materials which are made using low-dust and low-stress sawing and milling techniques with the
highest product flexibility, precision and throughput separation. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product Data

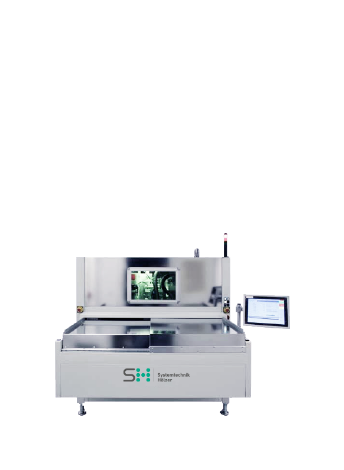

Compact depanelizer for flex foils, residual web connection and pre-scored circuit boards.
The highly dynamic LOW laser depaneling machine is especially suitable for medium to high product volumes and meets growing requirements in the production process. Printed circuit boards of various materials are made using low-dust, low-stress laser sawing and milling techniques separated
with maximum product flexibility, precision and throughput. Highly dynamic linear motor axes, tools and grippers meet the highest quality standards and guarantee the depaneling machine a long service life and reliability.
Product data

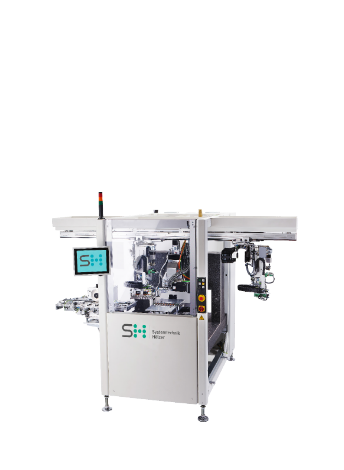

Fully automatic panel separator for residual web connection of pre-scored circuit boards.
The INT 4646 line machine offers powerful and economical depaneling of printed circuit boards, ideal for high volumes and product variance. With a stand space of (W / D / H) 1,000 mm x 1,850 mm x 1,750 mm, this inline
depanelling machine is one of the most compact models that guarantee fast, low-stress and low-dust depanelling of all types of PCBs.
Product Data

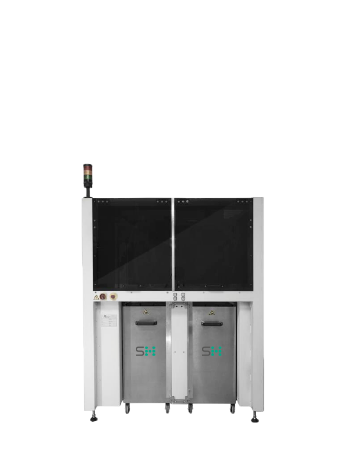

Special solutions for processing KLT and Trays.
Tray loader TL-6040 - 2-lane stacking module for the economical transport of trays (boxes) for printed circuit boards. The empty trays are removed from the transport trolley, automatically positioned and made available for assembly. Automatically stacked after filling on a 2nd transport trolley ...
Product Data
